Pipe lagging & Plumbing
물, 습기에 강한 ‘하나론’은 방수성, 방습성이 뛰어나며, 독립기포 구조이므로 보온•보냉성이 뛰어납니다.
특히 ‘하나로’ 난연성 제품은 국제 공인기관인 UL에서 인정 받았으며, 국내적으로는 에너지 관리공단의 열사용기자재 형식 승인으로 보장됩니다.

Property
’HANALON’, which is resistant to water and humidity, is excellent in water repellency and damp proof property.
Particularly, ‘HANALO’ flame-retarding product was acknowledged by UL which is an international certification agency, and internally, this product is guaranteed as the Korea Energy Management Corporation’s forma approval of heat using machinery.
Strong Point
1.1 It’s available for far-reaching temperature conditions.
It’s available under the far-reaching temperature conditions from 120℃
  in heat resistance to -80℃ in cold resistance.
2. It’s impact-free from copper ion.
Its weather resistance is excellent and it removes any worries about corrosion
  of a copper tube.
3. It’s simple and convenient in construction.
It’s good in flexibility and simply constructible for curved piping.
(Particularly, pair type is suited for a detachable air-conditioner.
4. Its wrap-up stage is clean.
It is an extruded foamed piping material in the state of pipe,
making it possible to do clean construction and to make a simple wrap-up.
5. Its chemical resistance is excellent.
It has a polyethylene property, making itself sanitary and its chemical resistance is amazingly excellent.
■ Dew point

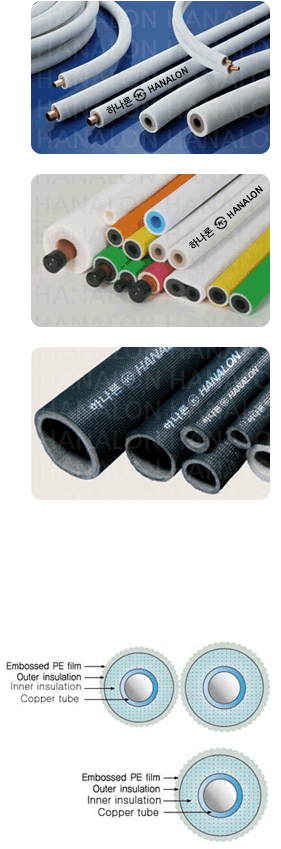

■ Pair type
It has the paired form of a liquid state and gas pipe use, and it is easy to separate one from the other, and it’s possible to use it by cutting according to the required length, and efficient in reduction in working hours and labor cost.
■ Single type
It’s possible to use it by cutting according to the required length, and economical as it doesn’t discharge waste, as well as efficient in reduction in time and labor cost. Particularly, 20-mm thickness is all the more efficient in preventing dew condensation through the reinforced thermal property.
Hot water supply piping Automated Vending Machine Oil Storage for Industrial use
Air-Conditioning & Heating system Piping
Sola-system Piping
Upper heating piping
Show-case
Air-conditioning for automobiles
piping member, such as washing up connector, etc
piping materials, such as water bottles, liquor barrel, and oil barrel, etc.
Product Standards
Cross-linkable heat-resistant thermal insulating materials Cross-linked flame-retardant heat insulating materials
Internal Diameter 6.35mm – 34.93mm 9.52mm – 60.50mm
Thickness 8mm – 20mm 5mm – 20mm
Length Straight type or Coil type can be produced according to orders
