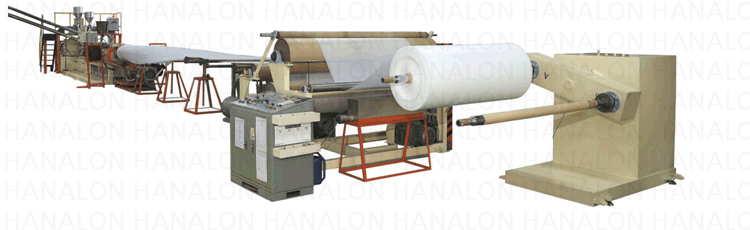

PE Foam sheet Extrusion line: Sheet production of Polyethylene through physical gas foaming method

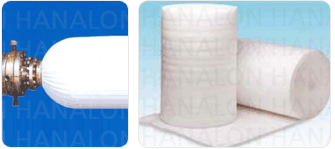

· Application: - Shock-absorbing packaging materials for electrical equipment,
pottery and glass products, etc; - Heat Insulating materials for agriculture and architecture; - Static preventive foam for electronic parts; - Heat insulating material for Ice Cream and Frozen Food; - Diverse sorts of packaging materials for fruit and bottles, etc.

Model	HSS-PE105	HSS-PE120	HSS-PE130	HSS-PE150
L/D	50:1	51:1	52:1	53:1
Sheet Width (mm)	1000 - 1500	1000 - 1800	1000 - 1800	1000 - 1800
Sheet Thickness (mm)	0.5 - 4.0	0.5 - 5.0	10 - 6.0	2.0 - 10.0
Capacity (kg/hr)	150 - 200	180 - 220	230 - 300	250 - 400
Screw Dia (mm)	105	120	130	150
Blowing agent	Butane Gas
